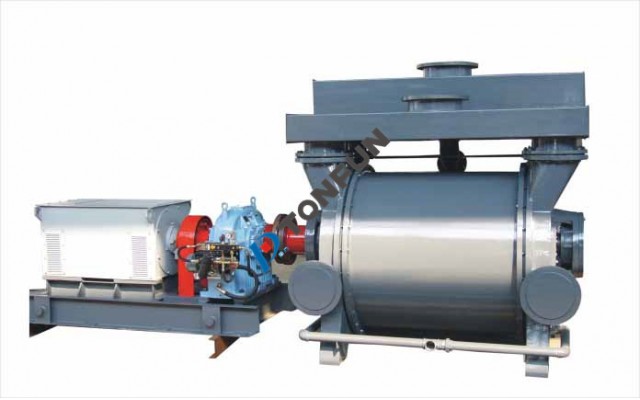

2BE1 TYPE GAS DRAINAGE PUMP
产品介绍
The 2BE1 series gas drainage pump is the structure form of single stage single action, and the working medium is normal temperature water, which is usually used to suck insoluble water, free of solid particles and non-corrosive gas, forming a vacuum in the pumping system. It can be specially used to extract flammable, explosive and corrosive gases such as gas by changing the material of the main parts.
产品特点
1. Strong pumping capacity: the impeller and distributor are optimized to increase the suction and exhaust area
2. Efficient operation: The gas is drawn and discharged evenly along the distribution plate. The vent equipped with flexible valve plate can automatically adjust the exhaust Angle to avoid over or under-compression.
3. Anti-cavitation strength: equipped with anti-cavitation device and the distributor also has corresponding cavitation holes.
4. Strong adaptability: when overflow part is sprayed with high molecular coating or over-flowing surface sprayed with non-metallic material layer (the company's patent), it can meet the requirement of very demanding corrosion protection; At the same time, its smooth surface can effectively reduce the sediment of the ash and slow down the scaling process.
2. Efficient operation: The gas is drawn and discharged evenly along the distribution plate. The vent equipped with flexible valve plate can automatically adjust the exhaust Angle to avoid over or under-compression.
3. Anti-cavitation strength: equipped with anti-cavitation device and the distributor also has corresponding cavitation holes.
4. Strong adaptability: when overflow part is sprayed with high molecular coating or over-flowing surface sprayed with non-metallic material layer (the company's patent), it can meet the requirement of very demanding corrosion protection; At the same time, its smooth surface can effectively reduce the sediment of the ash and slow down the scaling process.
应用领域
Coal mine: gas drainage, vacuum dewatering, etc
Petrochemical industry: gas pressure, vacuum system
Paper industry: vacuum dehydration
Iron and steel metallurgy: vacuum dewatering
Cigarette industry: cigarette machine negative pressure system, vacuum moisture-proof
Petrochemical industry: gas pressure, vacuum system
Paper industry: vacuum dehydration
Iron and steel metallurgy: vacuum dewatering
Cigarette industry: cigarette machine negative pressure system, vacuum moisture-proof
型号说明
Single pump model representation method:
1, 2, 3, 4, 5, 6, 7, 8
2, B, E, 1
1, 2, 3, 4 -- single stage liquid ring vacuum pump
5, 6 -- nominal radius of impeller (cm)
7 -- code name for impeller width and diameter ratio
8 -- minimum suction absolute pressure
Description method of complete unit
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
2, B, E, 1
1, 2, 3, 4 -- single stage liquid ring vacuum pump
5, 6 -- nominal radius of impeller (cm)
7 -- code name for impeller width and diameter ratio
8 -- minimum suction absolute pressure
9 -- pump structure material code
10 -- transmission code
11 -- shaft seal type code
12 -- code of direction of pump exhaust port
13 -- code number of rotation speed
型谱图
