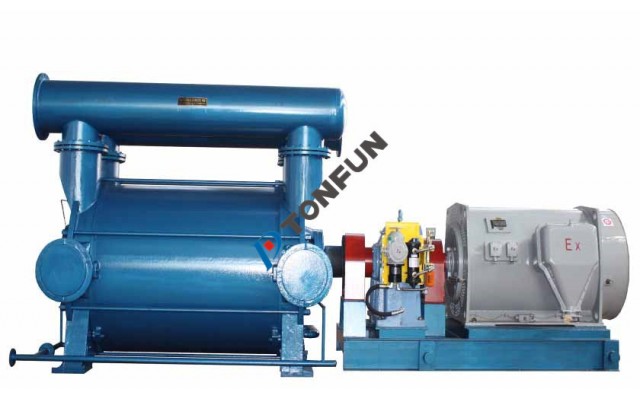

2BEP TYPE GAS DRAINAGE PUMP
产品介绍
The 2BEP gas drainage pump is a new generation of high-efficiency and energy-saving product developed by the company based on years of production of liquid ring vacuum pump and combined with the advanced technology of international similar products. Reasonable structure, prominent advantages, pump efficiency than the same type of traditional design by 10%- 20%
产品特点
1. There is no metal friction surface in the pump chamber, and no spark will be generated which meets the safety requirements.
2. High rotating speed, large displacement, effective and rapid extraction of gas and other mixed gases.
3. Seal between rotating parts and fixed parts can be directly completed by water seal.
4. The temperature change of the compressed gas process in the pump chamber is very small, similar to isothermal compression; it has high safety performance for flammable and explosive gases such as gas drainage.
5. High energy efficiency, strong environmental adaptability, high operational reliability and low noise
6. Simple structure, easy operation and convenient maintenance.2 BEP 40, 0, 2 -- B, D, 3, C
2. High rotating speed, large displacement, effective and rapid extraction of gas and other mixed gases.
3. Seal between rotating parts and fixed parts can be directly completed by water seal.
4. The temperature change of the compressed gas process in the pump chamber is very small, similar to isothermal compression; it has high safety performance for flammable and explosive gases such as gas drainage.
5. High energy efficiency, strong environmental adaptability, high operational reliability and low noise
6. Simple structure, easy operation and convenient maintenance.2 BEP 40, 0, 2 -- B, D, 3, C
应用领域
Coal mine: gas drainage, vacuum dewatering, etc
Petrochemical industry: gas pressure, vacuum system
Paper industry: vacuum dehydration
Iron and steel metallurgy: vacuum dewatering
Cigarette industry: cigarette machine negative pressure system, vacuum moisture-proof
Petrochemical industry: gas pressure, vacuum system
Paper industry: vacuum dehydration
Iron and steel metallurgy: vacuum dewatering
Cigarette industry: cigarette machine negative pressure system, vacuum moisture-proof
型号说明
2 BEP 40, 0, 2 -- B, D, 3, C
2BEP -- liquid ring vacuum pump series code
40 -- Nominal radius of impeller (unit: cm)
0 -- Pump body has no partition code." 0" no divider, 6" no divider.
2 -- Minimum suction pressure up to 160mbar.
B -- Structural material code." B" is ordinary material;" B1" main flow parts spray polymer materials;" E" grey cast iron/nickel chromium stainless steel;" F" nickel chromium stainless steel.
D -- Transmission code. " D" direct transmission;" V" belt drive, "G" reducer drive.
3 -- shaft seal form code: "3" is outer water supply packing seal;" 4" for internal water supply packing seal;" 2" is a single-face mechanical seal;" 5" double end mechanical seal.
C -- Pump speed code (unit: r/min)
