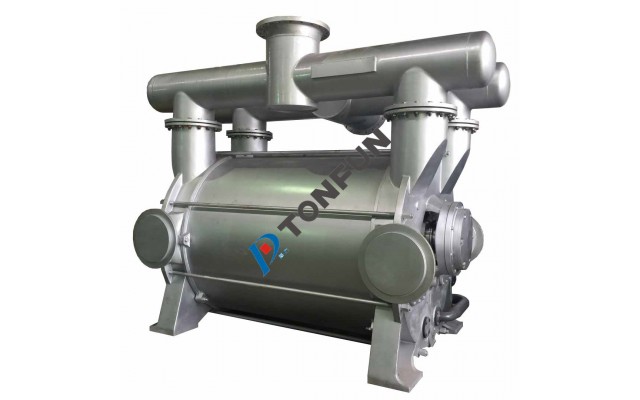

2BEP 82/92/102 LARGE GAS DRAINAGE PUMP

产品介绍
Based on years of scientific research and production experience, and combined with international advanced technology of similar products, this series of ultra-large gas extraction pump is a high-efficiency energy-saving product developed by our company. It represents the latest technology in the industry of liquid ring pump. Its efficiency is much higher than the traditional design of similar models, and the amount of gas extraction is much higher than that of ordinary small pumps. It can also be used to suck corrosive gases or to use corrosive liquids as working fluids by changing the material.
产品特点
1. The high speed of the large pump and the high amount of air pumped can facilitate the timely and rapid discharge of the gas in the mine.
2. This series of pumps have the advantages of simple structure, convenient maintenance, reliable operation and wide application range. It can adapt to harsh working conditions such as large displacement and fluctuating load.
3. The temperature of compressed gas drawn out by the gas pump is not high, this exhaust gas temperature is also safe for gas extraction to some extent.
4. There is no direct friction between the internal moving parts of the gas drainage pump with small wear amount and good safety performance.
应用领域
Coal mine: gas drainage, vacuum dewatering, etc
Petrochemical industry: gas pressure, vacuum system
Paper industry: vacuum dehydration
Iron and steel metallurgy: vacuum dewatering
Cigarette industry: cigarette machine negative pressure system, vacuum moisture-proof
型号说明

Example: 2BEP 92, 0, 2 -- B, D, 3, C

2BEP -- liquid ring vacuum pump series code

92 -- Nominal radius of impeller (unit: cm)

0 -- pump body has no partition code." 0" no divider, 6" no divider.

2 -- Minimum suction pressure up to 160mbar.

B -- Structural material code. " B" is ordinary material;" B1" main flow parts spray polymer materials;" E" grey cast iron/nickel chromium stainless steel;" F" nickel chromium stainless steel.

D -- Transmission code. "D" direct transmission;" V" belt drive, "G" reducer drive.

3 -- shaft seal form code: "3" is outer water supply packing seal;" 4" for internal water supply packing seal;" 2" is a single-face mechanical seal;" 5" double end mechanical seal.

C -- Pump speed code (unit: r/min)
