S TYPE SPLIT CASE CENTRIFUGAL PUMP
产品介绍

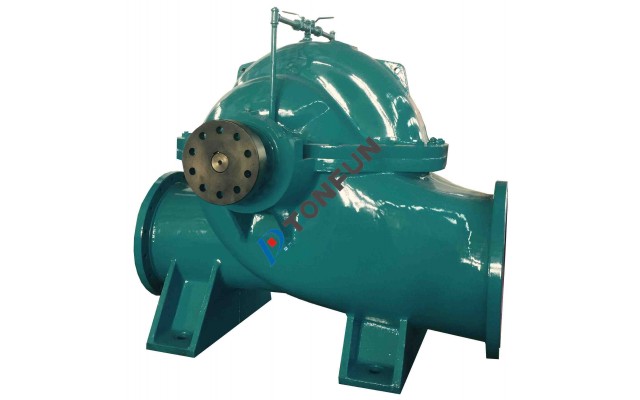

S-type single-stage double-suction centrifugal clean pump is a horizontal type centrifugal pump which can be used to transport clean water or other liquids with chemical properties similar to water.
?
The lift for S series pump from 10 m - 125 - m, traffic from 126 m3 / h - 21800 m3 / h, diameter from 150 mm - 1400 mm, conveying liquid temperature is 20 ℃ - - 80 ℃.
The inlet and outlet of s-type pumps are all below the pump axis and perpendicular to the axis in a horizontal direction. The pump is mainly composed of pump body, pump cover, impeller, shaft, seal ring, bearing body and sleeve, etc. The separate surface of the pump body and pump cover is on the pump shaft line, which can be easily overhauled without dismantling the inlet and outlet piping and motor.
Bearing: the pump shaft is supported by two single row radial ball bearings, lubricated with grease or thin oil.
Shaft seal: adopt soft packing seal and mechanical seal according to user's requirement.
Transmission: driven directly by the motor through the elastic coupling, and seen from the motor end, the pump rotates clockwise. It can also be changed according to user demand.
Material: the pump material is mostly cast iron, except the shaft is quality carbon steel. According to the user's requirement, the flow parts or other parts can also be made of ductile iron, stainless steel and other anti-wear and anti-corrosion materials.
?
The lift for S series pump from 10 m - 125 - m, traffic from 126 m3 / h - 21800 m3 / h, diameter from 150 mm - 1400 mm, conveying liquid temperature is 20 ℃ - - 80 ℃.
The inlet and outlet of s-type pumps are all below the pump axis and perpendicular to the axis in a horizontal direction. The pump is mainly composed of pump body, pump cover, impeller, shaft, seal ring, bearing body and sleeve, etc. The separate surface of the pump body and pump cover is on the pump shaft line, which can be easily overhauled without dismantling the inlet and outlet piping and motor.
Bearing: the pump shaft is supported by two single row radial ball bearings, lubricated with grease or thin oil.
Shaft seal: adopt soft packing seal and mechanical seal according to user's requirement.
Transmission: driven directly by the motor through the elastic coupling, and seen from the motor end, the pump rotates clockwise. It can also be changed according to user demand.
Material: the pump material is mostly cast iron, except the shaft is quality carbon steel. According to the user's requirement, the flow parts or other parts can also be made of ductile iron, stainless steel and other anti-wear and anti-corrosion materials.
产品特点
1. New high-efficiency and energy-saving products of s-type single-stage double-suction centrifugal pump system with wide flow range and high lift that can also be designed according to user requirements.
2. The impeller is optimized and designed in accordance with national standards and specifications, with high degree of serialization, standardization and generalization, strong interchangeability of parts, easy installation and maximum cost saving.
3. This type of pump has advanced performance, stable operation, safe and reliable, and adopts new structure and new material in the design, which can be used for transportation of various media.
4. S-type pump adopts the best hydraulic model at home and abroad at present, with stable performance, compact structure, small vibration and high pressure resistance of pump body.
5. The S type pump is cut by using the prototype impeller and its impeller, the profile is wide and efficient, and in the range of the profile performance, it is possible to provide a pump suitable for any flow head working point required by the user.
2. The impeller is optimized and designed in accordance with national standards and specifications, with high degree of serialization, standardization and generalization, strong interchangeability of parts, easy installation and maximum cost saving.
3. This type of pump has advanced performance, stable operation, safe and reliable, and adopts new structure and new material in the design, which can be used for transportation of various media.
4. S-type pump adopts the best hydraulic model at home and abroad at present, with stable performance, compact structure, small vibration and high pressure resistance of pump body.
5. The S type pump is cut by using the prototype impeller and its impeller, the profile is wide and efficient, and in the range of the profile performance, it is possible to provide a pump suitable for any flow head working point required by the user.
应用领域
Power industry: factory water supply
Coal industry: mine drainage
Paper industry: factory water supply
Iron and steel metallurgy: water supply and drainage system
Urban water supply and drainage: domestic water supply, water plant industrial water supply
Irrigation: irrigation
Cigarette industry: factory water supply system
Coal industry: mine drainage
Paper industry: factory water supply
Iron and steel metallurgy: water supply and drainage system
Urban water supply and drainage: domestic water supply, water plant industrial water supply
Irrigation: irrigation
Cigarette industry: factory water supply system
型号说明
200 S 95 A
200 --- Pump suction inlet diameter (mm)
S --- Single stage double suction centrifugal pump
--- pump design point head (m)
A --- First cut of pump impeller outside diameter (change of impeller outside diameter)
Note: our S series products are all equipped with mechanical seals. The model is marked with M after S and no M is the packing seal. For example, the shaft seal type of 200S95 is packing seal, and the shaft seal type of 200SM95 is mechanical seal. Adding F after S or M is reverse rotation, and missing value is forward rotation.
