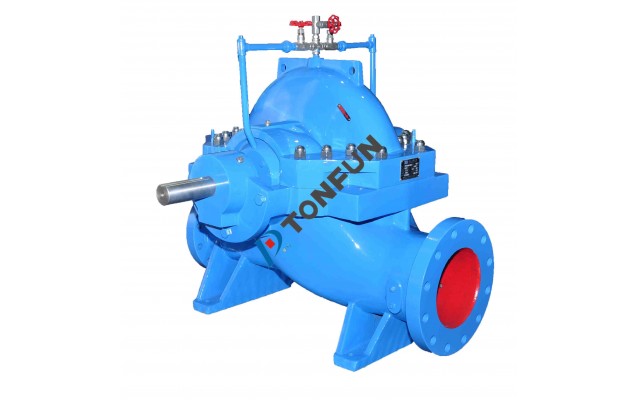

TFS TYPE SPLIT CASE CENTRIFUGAL PUMP
产品介绍
TFS and TFGS pumps are split case centrifugal pumps with single-stage double-suction pump body. It is mainly used for conveying liquid in factories, mines, waterworks, air conditioning and circulation water, construction water, irrigation, drainage pump station, power station, industrial water supply system, fire control system and ship industry. The full series of TFS and TFGS can be carried out in our large digital testing center.
Operation data of TFS and TFGS series pumps:
Pump outlet diameter DN 80-800mm
Flow rate Q 11600 m3 / h or less
Lift H 200 m or less
Working temperature T 105 ℃ or less
Solid particles are no more than 80mg/L
Allowable working pressure is no more than 25bar
Allowable test pressure is 37.5bar
Operation data of TFS and TFGS series pumps:
Pump outlet diameter DN 80-800mm
Flow rate Q 11600 m3 / h or less
Lift H 200 m or less
Working temperature T 105 ℃ or less
Solid particles are no more than 80mg/L
Allowable working pressure is no more than 25bar
Allowable test pressure is 37.5bar
产品特点
1. The double-suction impeller with smooth operation and optimized design reduces the axial force to the minimum and has excellent hydraulic performance. Through precision casting, the inner surface of the pump shell and the impeller surface are extremely smooth and have remarkable anti-cavitation performance.
2. Reasonable design, compact structure, beautiful appearance, good stability and easy installation.
3. Imported bearings and special bearings can be selected to ensure smooth operation, low noise and long service life.
4. Mechanical seal or packing seal can be selected for shaft seal. Ensure 8,000 hours of operation without leakage.
5. There is no need to adjust the mounting form during assembling. Vertical or horizontal mounting can be done according to site conditions.
2. Reasonable design, compact structure, beautiful appearance, good stability and easy installation.
3. Imported bearings and special bearings can be selected to ensure smooth operation, low noise and long service life.
4. Mechanical seal or packing seal can be selected for shaft seal. Ensure 8,000 hours of operation without leakage.
5. There is no need to adjust the mounting form during assembling. Vertical or horizontal mounting can be done according to site conditions.
应用领域
Power industry: factory water supply
Coal industry: mine drainage
Paper industry: factory water supply
Iron and steel metallurgy: water supply and drainage system
Urban water supply and drainage: domestic water supply, water plant industrial water supply
Coal industry: mine drainage
Paper industry: factory water supply
Iron and steel metallurgy: water supply and drainage system
Urban water supply and drainage: domestic water supply, water plant industrial water supply
型号说明
For example: TFS150-360 (G) A
TFS - volute bedroom centrifugal pump
150~ 150mm diameter of pump outlet
The nominal diameter of 360~ impeller is 360mm
G ~ expanding flow pattern
A~ impeller through the first cut
型谱图
