  • 2BG TYPE MEDIUM AND HIGH PRESSURE LIQUID RING COMPRESSOR

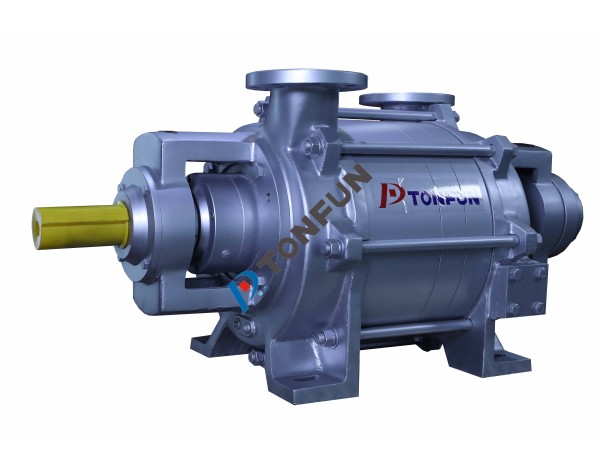

2BG TYPE MEDIUM AND HIGH PRESSURE LIQUID RING COMPRESSOR

Category:

Brief introduction:2BG series medium and high pressure liquid ring compressors can be widely used in petroleum and chemical industry, especially in chlor-alkali industry, PVC industry, pharmaceutical industry and other industries for gas compression transportation, tail gas recovery etc. It features high pressure, compact structure, reliable operation, convenient operation and high pressure area pumping speed. Because the compression process is carried out in isothermal state, there is no dangerous in compression flammable, explosive gas. It is widely used in the suction chemical industry and oil industry.

National Advisory Service Hotline:400-998-2348

PurchaseConsulting

  • product description
一、Features:
1. Stainless steel material, reliable sealing element, integrated double-end mechanical seal are adopted, so achieve zero leakage when pressure feeding gas.
2. The gas containing a large amount of water vapor and small particles can be aspirated and the gas which is soluble in water or not easily in contact with water can be compressed when other liquids are used as working fluid.
3. The parts which can be supplied in unit are as follow: electric control system, gas-liquid separator, heat exchanger, condenser, etc., which constitute a complete unit, automatically monitored and controlled automatically.
4. In terms of compressor performance, it can completely replace similar foreign products.
5. There are two types of structures: single and double stage.
二、Model Description:

Sample:2BG 2―30
2BG--- medium and high pressure liquid ring compressors name
2 ---- stands for stage, such as "2" stands for double stages, and "1" stands for single stage
30 ---- Represents the maximum pumping speed of the pump, m3/min.

三、Spectrogram:
四、Application field:
Chlor-alkali, polyethylene, styrene, oxide, vinyl chloride monomers, sulfur dioxide, hydrogen sulfide, benzene, styrene, oxygen, etc

Order:2BG TYPE MEDIUM AND HIGH PRESSURE LIQUID RING COMPRESSOR
