产品介绍

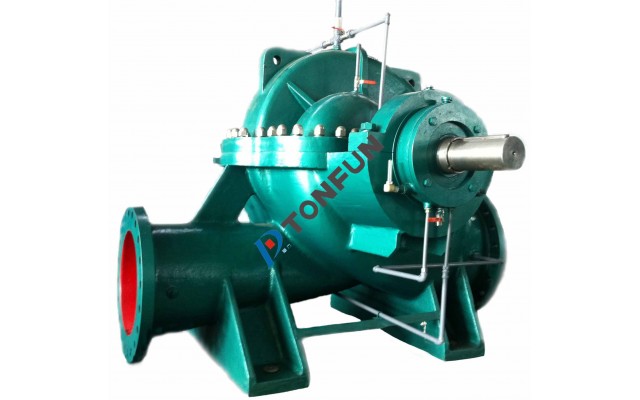

The SAP type pump is a single-stage double-suction split case centrifugal pump which is a new series of products developed through structural optimization design on the basis of the SA type pump. It also absorbs and improves the technology of the double suction pump of KSB Company in West Germany and IR Company in the United States to make it more reasonable, reliable with better hydraulic performance and higher efficiency. The pump series products are used for conveying clean water without solid particles and other liquids with physical and chemical properties similar to water. The medium temperature being transported is 0~80℃, which is suitable for water supply and drainage pumps of factories, cities, mines, power stations, farmland and hydraulic engineering.
Parameter range:
Flow rate Q: 72-9900 m3 / h
Head H: 6.8~104m
Maximum allowable inlet pressure: 6X105Pa
产品特点
1. SAP hydraulic model is advanced, high efficiency, low matching power, high lift, low starting current, energy saving and high efficiency.
2. Asymmetrical impeller design, optimized pump shell shape structure, more advanced casting process, smooth and beautiful external surface.
3. The main shaft of SAP is the main shaft. On the one hand, it strengthens the rigidity and strength of the main shaft. On the other hand, it is convenient to assemble and disassemble during installation and maintenance. The design of shaft through shaft, SAP pump can guarantee the safety of equipment in case of emergency failure.
4. The SAP pump has effectively treated the dead water area inside the pump.
5. Fill the performance gap between S and SH pumps, and provide optimized water supply and drainage schemes for different customers in different environments.
应用领域
Power industry: factory water supply
Coal industry: mine drainage
Paper industry: factory water supply
Iron and steel metallurgy: water supply and drainage system
Urban water supply and drainage: domestic water supply, water plant industrial water supply
Irrigation: irrigation
Cigarette industry: factory water supply system
型号说明
For example: 10SAP-6JA
10~ the suction diameter is divided by 25 (that is, the suction diameter is 250mm)
SAP - single - stage double - suction centrifugal pump
A round number whose speed is divided by 10
J~ pump speed change (not expressed when maintaining the original speed)
A~ pump impeller outside diameter changes (maximum diameter is not indicated)
型谱图
