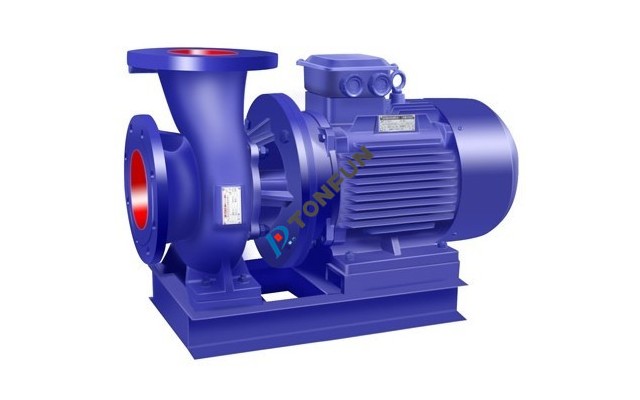

TFW TYPE CENTRIFUGAL PUMP
产品介绍
TFW series single stage single suction horizontal straight pump, It is the company reference the type of centrifugal pump performance parameters and the unique structure of the vertical pump to design improvements. It conforms to ISO2858, ISO5199 international standards, flow range of 15~1200m3/h, high head, especially for high-rise building water supply and drainage, irrigation, metallurgy, municipal, mining sewage treatment, food, chemical, air conditioning and other industries to transport water, chemical media and other liquids. There are more than 250 specifications, such as basic type, diffuser type, A, B, C cutting, etc., and according to the fluid medium and temperature, and change the material and performance of the main parts, and can be derived from the clean water pump, hot water pump, chemical pump, explosion-proof oil pump, explosion-proof chemical pump and other products.
产品特点
1. Interchangeability in connection with other products that meet the requirements of this standard and pump shell, convenient installation and maintenance, shorter axial dimension and less occupation area;
2. Structural design for improving quality -- the pump body adopts the form of high-efficiency volute, whose flange conforms to GB/ t1724.6-1998 pn1.6mpa (16bar);
3. No leakage mechanical seal design -- suitable for occasions where leakage is not allowed, solve the serious leakage problems caused by packing or ceramic seal, ensure the site is clean and tidy, meet the requirements of safety and environmental protection;
4. Direct connecting frame -- the pump and motor are directly connected through the direct connecting frame. The structure is simple and compact, and the concentricity of the components is high.
5. Wide range of flow and head, high efficiency, suitable for all kinds of water supply and drainage conditions, to provide users with the best selection scheme
2. Structural design for improving quality -- the pump body adopts the form of high-efficiency volute, whose flange conforms to GB/ t1724.6-1998 pn1.6mpa (16bar);
3. No leakage mechanical seal design -- suitable for occasions where leakage is not allowed, solve the serious leakage problems caused by packing or ceramic seal, ensure the site is clean and tidy, meet the requirements of safety and environmental protection;
4. Direct connecting frame -- the pump and motor are directly connected through the direct connecting frame. The structure is simple and compact, and the concentricity of the components is high.
5. Wide range of flow and head, high efficiency, suitable for all kinds of water supply and drainage conditions, to provide users with the best selection scheme
应用领域
TFW series centrifugal pump is mainly used to pump water or no solid particles and fiber, weak corrosive liquid, can be widely used in the following fields: high-rise water supply, building fire, central air-conditioning water circulation; Circulating water supply, cooling water circulation, boiler water supply, industrial water supply and drainage in the process system; Water plant water supply, irrigation, etc.
型号说明
Example: TFW (I), 80-160 A
TFW~ horizontal fresh water pump
80~ pump inlet and outlet diameter
160~ nominal diameter of impeller
I ~ expanding flow pattern
A~ impeller is cut for the first time
型谱图
