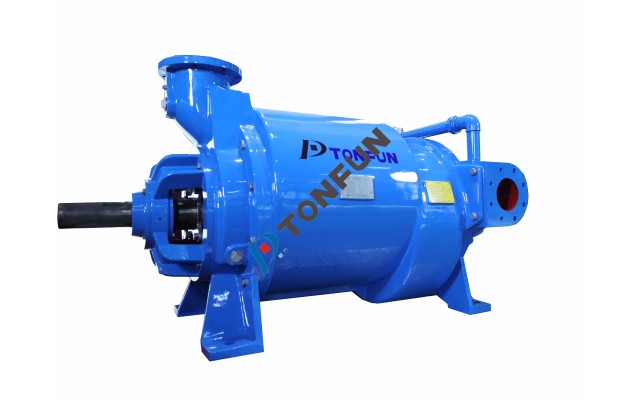

TFTC TYPE CONE DOUBLE STAGE LIQUID RING VACUUM PUMP
产品介绍
TFTC type two-stage vacuum pump is an advanced technology developed by our company on the basis of imported advanced technology, and according to the experience of the production planar disk-type liquid ring pump which has accumulated over many years, we have produced this type double-stage cone vacuum pump through absorption, continuous improvement and innovation, so as to increase the pumping capacity of the pump, reduce the operation energy consumption and prolong the service life of the pump.
产品特点
1. Due to the conical open air intake, large opening, smooth flow passage, small air and flow resistance, small gap between the impeller and the cone, high efficiency.
2. Significantly increased air extraction, low shaft power, greatly reduced energy consumption, and effectively prevented cavitations.
3. At the same time, less heat is generated which improves the efficiency of heat exchanger
4. Comparaed with flat vacuum pump, the exhaust port of the cone type vacuum pump is at the lower part of the pump, and the impeller is offset to the lower part of the pump too, the liquid level is lower at rest, the starting current is small, so the operation is safer and more reliable
2. Significantly increased air extraction, low shaft power, greatly reduced energy consumption, and effectively prevented cavitations.
3. At the same time, less heat is generated which improves the efficiency of heat exchanger
4. Comparaed with flat vacuum pump, the exhaust port of the cone type vacuum pump is at the lower part of the pump, and the impeller is offset to the lower part of the pump too, the liquid level is lower at rest, the starting current is small, so the operation is safer and more reliable
应用领域
Power industry: condenser vacuum
型号说明
Single pump model representation method:
1, 2, 3, 4, 5, 6, 7
T, F, T, C.
TFTC-TONFUN cone double - stage liquid ring vacuum pump
The nominal diameter of a vacuum pump impeller
