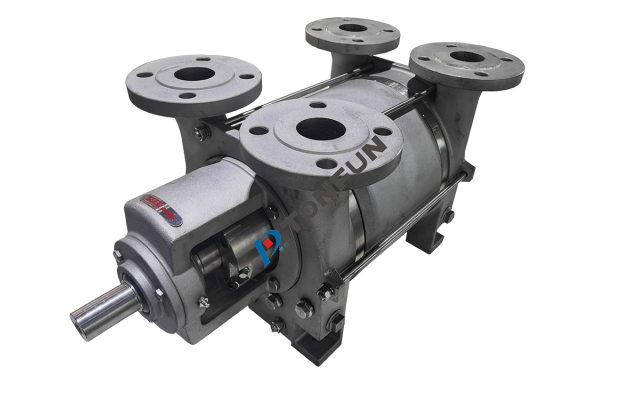

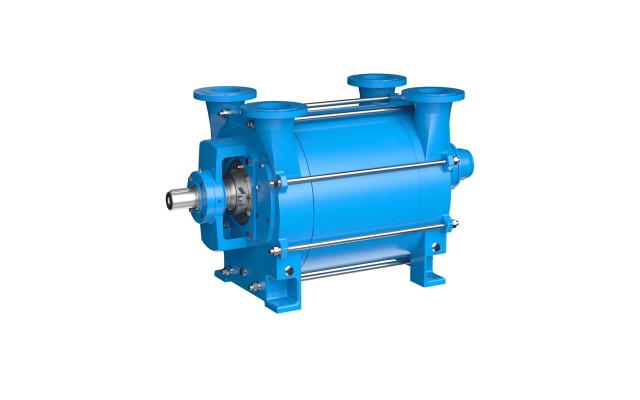

2BE1型液环真空泵
产品介绍
2BE1系列液环真空泵，是引进德国西门子技术制造的高效节能产品，为单级单作用的结构形式，工作介质为常温清水，通常用来抽吸不溶于水，不含固体颗粒，无腐蚀性的气体，使被抽系统形成真空。多年来，我公司在不断总结设计和制造经验的基础上，对设备的结构、性能及成套方式进行大量的改进和完善，使产品更先进、合理、节能，大大提高了机组运行效率和成套功能。该型泵吸入气体温度一般为-10℃～ +40℃,工作液温度为0 ℃～35℃
产品特点
1.抽气能力强：叶轮和分配器采用优化设计，增加吸排气面积
2.高效运行：气体沿分配板均匀吸入和排出;装有柔性阀板的排气口，能自动调节排气角，避免过压缩或压缩不足。
3.抗气蚀强：装有抗气蚀装置，分配器也有相应的气蚀孔。
4.适应性强：过流部件喷涂高分子涂层或过流表面喷涂外衬非金属材料层（本公司专利）时，可以满足十分苛刻的防腐要求；同时其光滑的表面可以有效降低灰状物的沉淀，减缓结垢过程。
2.高效运行：气体沿分配板均匀吸入和排出;装有柔性阀板的排气口，能自动调节排气角，避免过压缩或压缩不足。
3.抗气蚀强：装有抗气蚀装置，分配器也有相应的气蚀孔。
4.适应性强：过流部件喷涂高分子涂层或过流表面喷涂外衬非金属材料层（本公司专利）时，可以满足十分苛刻的防腐要求；同时其光滑的表面可以有效降低灰状物的沉淀，减缓结垢过程。
应用领域
电力行业：负压输送、凝汽器抽真空
煤炭行业：瓦斯抽放、真空脱水
石油化工：气体压送、真空系统
造纸行业：真空脱水
钢铁冶金：真空脱水
卷烟行业：卷烟机负压系统、真空防潮
煤炭行业：瓦斯抽放、真空脱水
石油化工：气体压送、真空系统
造纸行业：真空脱水
钢铁冶金：真空脱水
卷烟行业：卷烟机负压系统、真空防潮
型号说明
<p class="MsoNormal"><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> 单泵型号表示方法：</span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"><br/></span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">1 2 3 4</span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"><span style="font-family: 宋体;"> </span> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">5</span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> 6</span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-ascii-font-family: Arial; mso-hansi-font-family: Arial; mso-bidi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">7</span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-ascii-font-family: Arial; mso-hansi-font-family: Arial; mso-bidi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">8</span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"><br/></span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">2 B E 1</span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"><span style="font-family: 宋体;"> </span>□ </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">□ </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">□</span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"><span style="font-family: 宋体;">－</span>□</span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"><br/></span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">1 2 3 4</span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">---- </span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">单级液环真空泵</span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"><br/></span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">5</span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">6</span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">---- </span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">叶轮名义半径</span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">(</span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">厘米</span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">)</span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"><br/></span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">7</span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> ---- </span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">叶轮宽径比代号</span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"><br/></span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">8</span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> </span><span style="mso-spacerun: 'yes'; font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;"> ---- </span><span style="mso-spacerun: 'yes'; font-family: 宋体; mso-hansi-font-family: Arial; color: #2e2e2e; font-size: 10.5000pt; mso-font-kerning: 0.0000pt;">最低吸入绝对压力</span></p>
型谱图
